Refiner

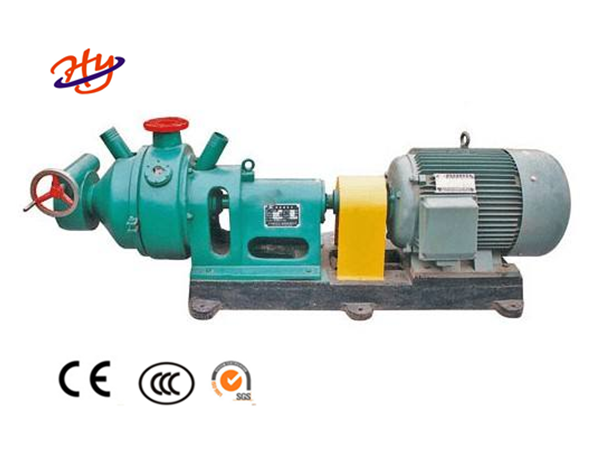

ZDP series double disc refiner is pulp refining equipment traditionally installed in stock preparation system for both waste paper and virgin pulp, to improve fibers characteristics in order to get a better sheet formation and enhance its properties. It can be used alone, or multiple refiners can be used in series or in parallel, based on the requirements of the pulp refining process.
Specification
Type | ZDP11C-380 | ZDP11C-450 | ZDP11C-500 |
Diameter of plate(mm) | 380 | 450 | 500 |
Capacity(t/d) | 6-20 | 8-60 | 15-80 |
Concentration(%) | 2-5 | 2-5 | 2-5 |
Power(kw) | 37 | 75 | 110 |
Weight(kg) | 900 | 1100 | 2000 |
Dimension(mm) | 2400*650*700 | 2550*830*840 | 2600*900*850 |
